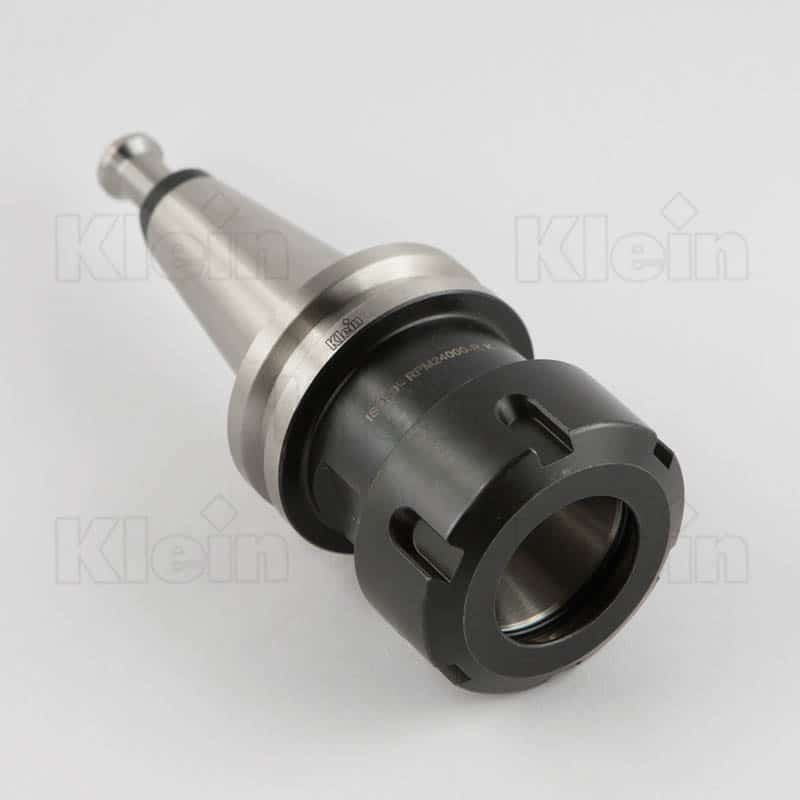

COLLET CHUCKS ISO 30

Tool holders supplied with nut (without collet) and retaining pawl
Balanced to 24000 RPM
Retaining pawl T118.792.R for: ALBERTI, VITAP, MASTERWOOD (motor G. Colombo)
Retaining pawl T118.791.R (DIN 69872) for: BUSELLATO, WEEKE, IMA, BULLERI, MAKA, COSMEC, REICHENBACHER.
Retaining pawl T118.794.R (DIN 69872) for: CMS (flange ø 46)
Spring collets DIN 6499 see our item T119
Threaded nut DIN 6499/ER40 see our item T123
For the clamping nuts see our item Z091 (without ball bearing nut) and/or Z091 (with ball bearing nut); for the wrenches see our item Z052 (standard) and/or Z052.
To be used on our adjustable demount device Klein^® T139
The "A" measure will be determined with clamped router bits' shanks by using both our spring collets DIN6499 and DIN6388. The "A" measure may be subject to variations depending on the diameter of the clamped tools.

גדלים וגרסאות נוספות

Item	A	D	D1	Spring collets	Clamping nut	Rotation
T118.810.R	68	50	50	Ø 2÷20 (Art. T119/ER32)	Z091.001.R	RH
T118.810.L	68	50	50	Ø 2÷20 (Art. T119/ER32)	Z091.001.L	LH
T118.812.R	68	50	50	Ø 2÷20 (Art. T119/ER32)	Z091.101.R w/ball bearing nut	RH
T118.814.R	68	63	50	Ø 2÷30 (Art. T123/ER40)	Z091.002.R	RH
T118.814.L	68	63	50	Ø 2÷30 (Art. T123/ER40)	Z091.002.L	LH
T118.816.R	68	63	50	Ø 2÷30 (Art. T123/ER40)	Z091.102.R w/ball bearing nut	RH
T118.820.R	68	50	50	Ø 2÷20 (Art. T119/ER32)	Z091.001.R	RH
T118.820.L	68	50	50	Ø 2÷20 (Art. T119/ER32)	Z091.001.L	LH
T118.822.R	68	50	50	Ø 2÷20 (Art. T119/ER32)	Z091.101.R w/ball bearing nut	RH
T118.824.R	68	63	50	Ø 2÷30 (Art. T123/ER40)	Z091.002.R	RH
T118.824.L	68	63	50	Ø 2÷30 (Art. T123/ER40)	Z091.002.L	LH
T118.826.R	68	63	50	Ø 2÷30 (Art. T123/ER40)	Z091.102.R w/ball bearing nut	RH
T118.880.R	52	50	46	Ø 3÷20 (Art. T134/ETS32)	Z091.301.R	RH
T118.881.R	52	50	46	Ø 3÷20 (Art. T119/ER32)	Z091.001.R	RH
T118.882.R	57	63	46	Ø 4÷25 (Art. T135/ETS40)	Z091.302.R	RH
T118.883.R	57	63	46	Ø 4÷25 (Art. T123/ER40)	Z091.002.R	RH
