For the spring collets see our item T119 – T123 – T124 – T125; for the clamping nuts see our item Z091 (without ball bearing nut) and/or Z091 (with ball bearing nut); for the wrenches see our item Z052 (standard) and/or Z052 (torque).
To be used on our adjustable demount device Klein®T139

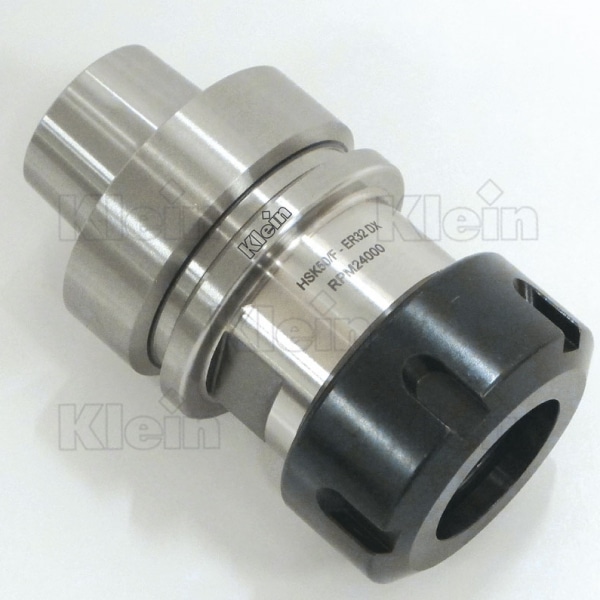

These tool holders ensure a maximum error of concentricity between the conical part and the tool's seat of 0.003mm (Runout: 0.0001")
The "A" measure will be determined with clamped tool shanks by using both our spring collets DIN6499. The "A" measure may be subject to variations depending on the diameter of the clamped tools.
The hollow taper shank is produced according to DIN69893 for inserting the Balluff microchip.
The ball bearing clamping nut improves the clamping precision thanks to a homogeneous clamping force. It can be used both for the right-hand and left-hand rotation.
